Description détaillée

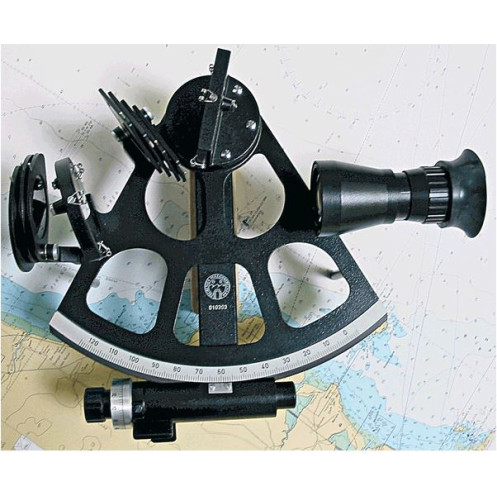

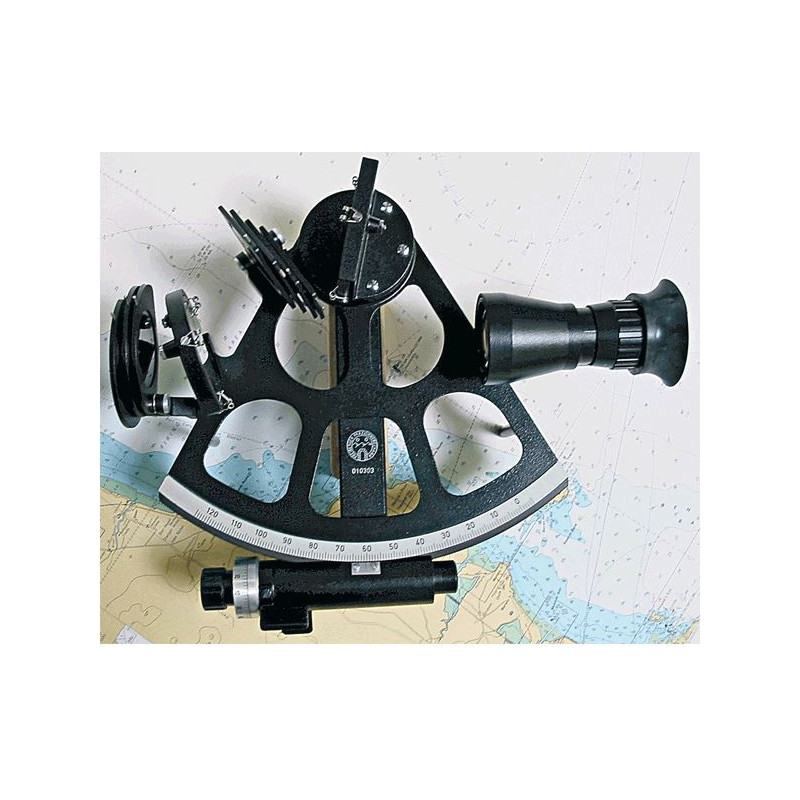

Sextant upmarket for the serious navigator and the long-term cruise.
Drum Sextant.
Excellent optics and quality engineering.
Complete with wooden box and tool kit.
Sextant of size and weight traditional, equipped with a telescope 4 x 40 mm.
The release system of the rack and micrometer drum is protected from dust and spray in a drum.
Finnish:
- Wood handle
- Plastic handle
- Wooden box
Color:
- Gray
- Black
- Blue
Option:
- Correction value 40"
- Correction value 20"
- Enlightenment
- Telescope 8 x 30
Datasheet:
- Measurement angle: -5° to 125°
- Blade radius: 170 mm
- Bezel: 4 x 40
- Index mirror: 57 x 42 mm, silvered front AV
- Horizon mirror: traditional, ø 57 mm, front side
- Filters: 4 indexes, 3 horizon
- Sextant dimensions: 26 x 24 x 13 cm
- Dimensions box: 34 x 32 x 17 cm
- Sextant weight alone: 1.4 kg
- Weight with box: 4.5 kg
