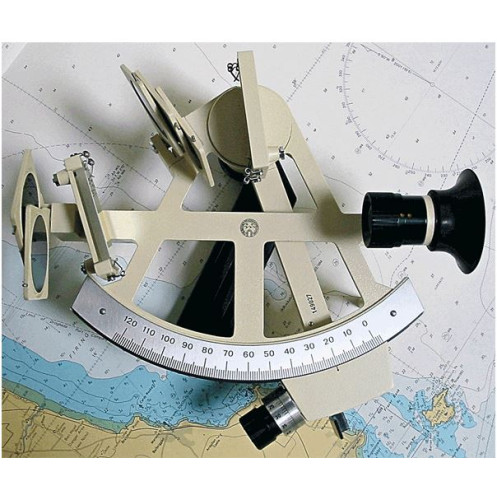

Sextant Freiberger Yacht

Sextant of German manufacture.

An instrument of smaller dimensions, adapted to pleasure where space, weight and bulk become crucial factors.

The good weight balance of the lightweight aluminum alloy chassis makes it comfortable to use.

Large mirrors, whose flatness and parallelism are subject to rigorous technical controls. The development of the telescope 2,4 x 25 is made by the lens, which has the great advantage of preventing a rotation of the windshield when not rocking the sextant disrupts the device at the precise moment observation.

To protect the eye, the respective brightnesses of both direct and reflected images can be adjusted by tilting the progressisve density filters, the number of 3 for the large mirror, and 2 small hand mirror.

Options: removable lighting device (battery operated)

Blade :

• radius 142 mm
• measuring range from -3° to + 123°
• interval 1°

Graduated drum :

• interval 1'

Window :

• 25mm lens
• magnification x 2.4

Finish :

• Plastic handle
• Wooden box

Color :

• Ivory
• Black
• blue

Option :

• Enlightenment

Size :

• sextant 24 x 21 x 11 cm
• transport case 26.5 x 24 x 15 cm

Weight :

• sextant: 860 grams
• with box: 2.80 kg
